AC Power Source – Non-Programmable

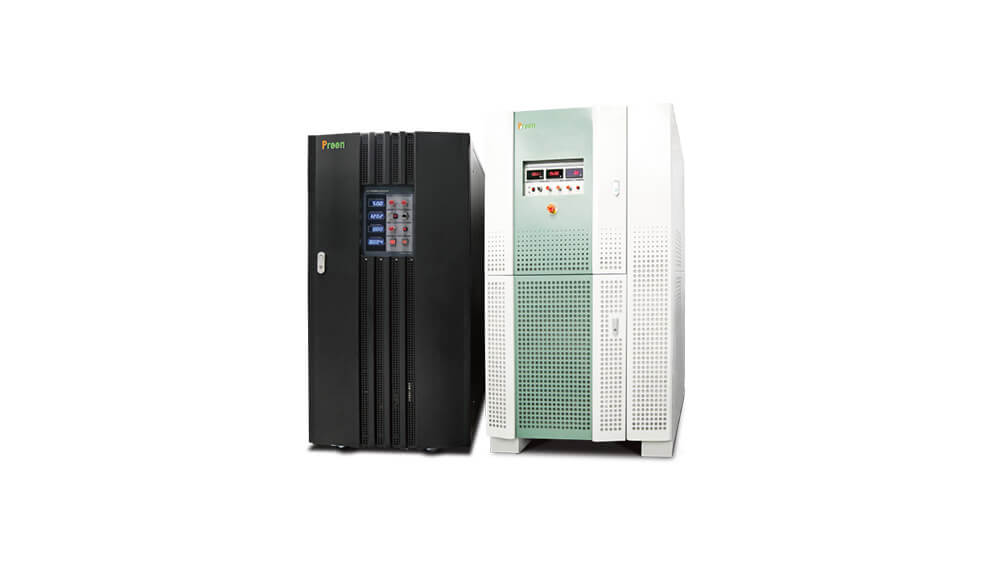

AFC Series
AC Power Source / Frequency Converter
Our AFC Series is a general AC Power Supply which can simulate standard or abnormal voltage and frequency status. It is suitable for the Certified Bureau, the production and R&D of various industries, including home appliances, electrical electronics, medical equipment and lighting.
The output voltage range of 5-300V with three-section voltage switch; Output frequency is switchable: 47-63Hz continuously adjustable, 50Hz fixed output, 60Hz fixed output, and optional output frequencies include 2 times, 4 times the standard frequency, and 400Hz.
Key Features
- Single-phase output models have the capacity range of 3kVA-120kVA, three-phase output models have the capacity range of 5-2000kVA.
- Comprehensive protection, which includes over-voltage, overcurrent, overload, input under-voltage and overheat. The corresponding fault code will show and the buzzer will sound when protection is activated.
- Modularised inverter which is compact, small and easy to maintain, with high power density.
- Emergency stop button to stop the output quickly.
- CE & RoHS certification, with excellent performance in safety and electromagnetic compatibility.
- Get test information at a glance via 4 groups of LED displays showing the output voltage, current, frequency etc. Users can switch the reading of the phase and line voltage.
- High input power factor, high efficiency of up to 92% at full load
