AC Power Source – Programmable

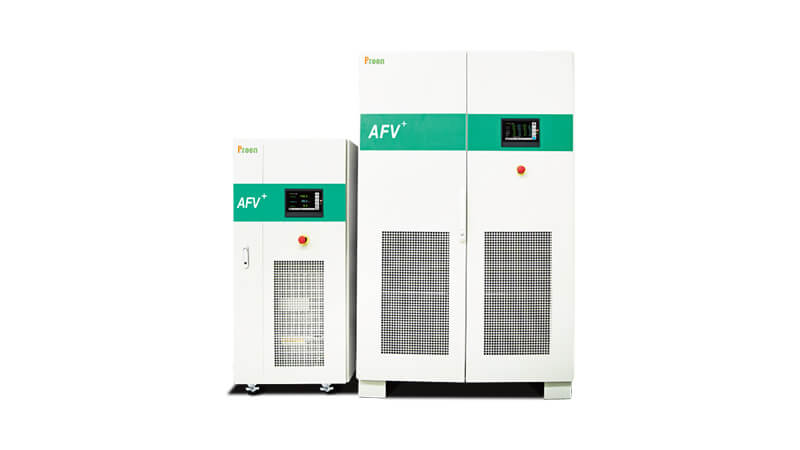

AFV+ Series
High Power Programmable AC Power Source
Utilising advanced PWM technology to deliver power with THD ≦ 0.5% and up to 2000kVA,
the output frequency of AFV+ Series is 45~65Hz, with an accuracy of ± 0.02%, and users can select 45~500Hz option to expand the frequency. The AFV+ series is ideal to simulate different region’s voltage and frequency conditions, and can cover applications for home appliances, motor, medical equipment, lighting and EMC laboratory.
The AFV+ Series features STEP and RAMP Programmable functions to easily simulate single or continuous output changes. Three phase independent adjustment, optional remote sensing and optional phase angle adjustment all provide convenient control to simulate different kinds of line disturbance. These features are ideal for test applications of R&D design verification, quality assurance and production checks. For remote control, the AFV+ series has standard RS-232 / RS-485 / RS-422 interface card and optional GPIB and Ethernet interfaces for easy setup and programming.
Key Features
-
Wide Output Power Range:
10kVA~2000kVA. - 0~300V output voltage and 45~65Hz output frequency (opt. 45~500Hz).
- The built-in STEP and RAMP functions are ideal to simulate different types of power line disturbances.
- The SOFT START feature can effectively reduce inrush current caused by motor startup.
- Via the Three Phase Independent Adjustment function, the AFV series can deliver each phase voltage differently to multiple single-phase DUTs.
- User can simulate phase shift with the optional Phase Angle Control function.
- The 7” touch screen shows parameters of voltage, current, frequency, real power, apparent power and sum of each phase’s parameters.
- CE & RoHS certified
- Optional remote sensing feature is available to improve precision.
