AC Power Source – Programmable

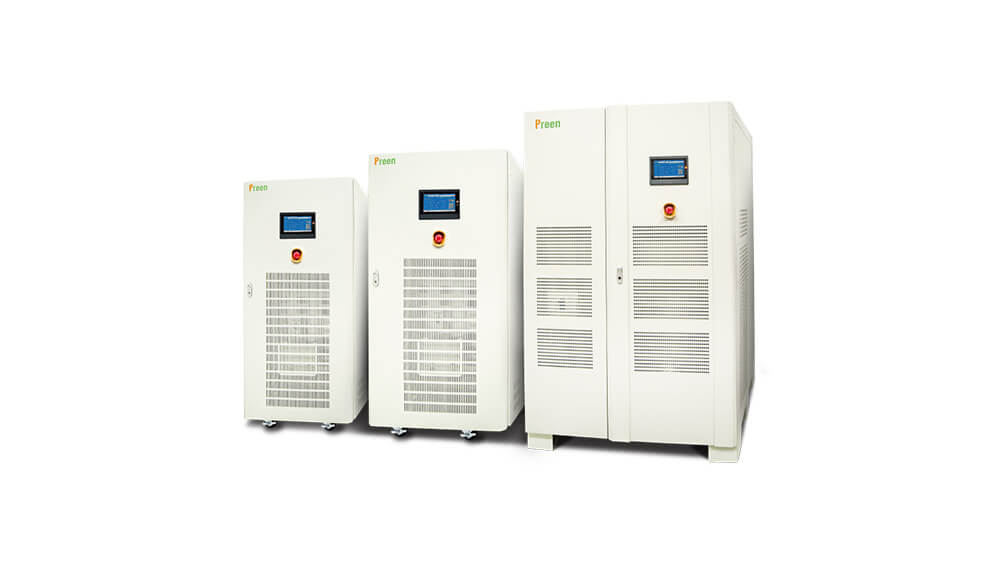

AFV Series
High Power Programmable AC Power Source
The AFV is a Series of Programmable AC Power Source that can be remotely controlled and integrated with other systems for easier operation. Applications include home appliances, electronics, medical equipment, lighting, etc. With better accuracy and faster response time, the AFV series offers greater advantage for R&D and compliance tests. Utilising PWM switching technology, AFV provides high-quality pure sine waveform with output level up to 2,000kVA. The AC source is coupled with an output voltage range of 0~300V and output frequency of standard 45~65Hz or optional 45~500Hz. Users can select communication interfaces of RS-485, RS-232, and optional GPIB. The AFV series also have programming sequence functions of STEP and GRADUAL modes, three-phase independent control, and soft start for optional choices.
Key Features
- CE & RoHS certified
- Modularised inverter which is compact, smaller and easy to maintain, with high power density.
- 7-inch touch screen which can display the phase voltage, current, frequency, active / apparent power, power factor and test information.
- Ability to simulate abnormal power status: STEP and GRADUAL change modes allow users to set sequences of start/end voltage, frequency and running time with ease.
- Comprehensive protections which include output undervoltage / overvoltage, overcurrent, overload, input undervoltage / overvoltage, overheat and other fault conditions.
- Three-phase voltage independently adjustable function: each phase voltage can be adjusted independently; therefore AFV can power more than one single-phase loads.
- Phase angle adjustment function: can adjust the phase angle between each phase (for three phase system).
