DC Power Supplies – Basic Series

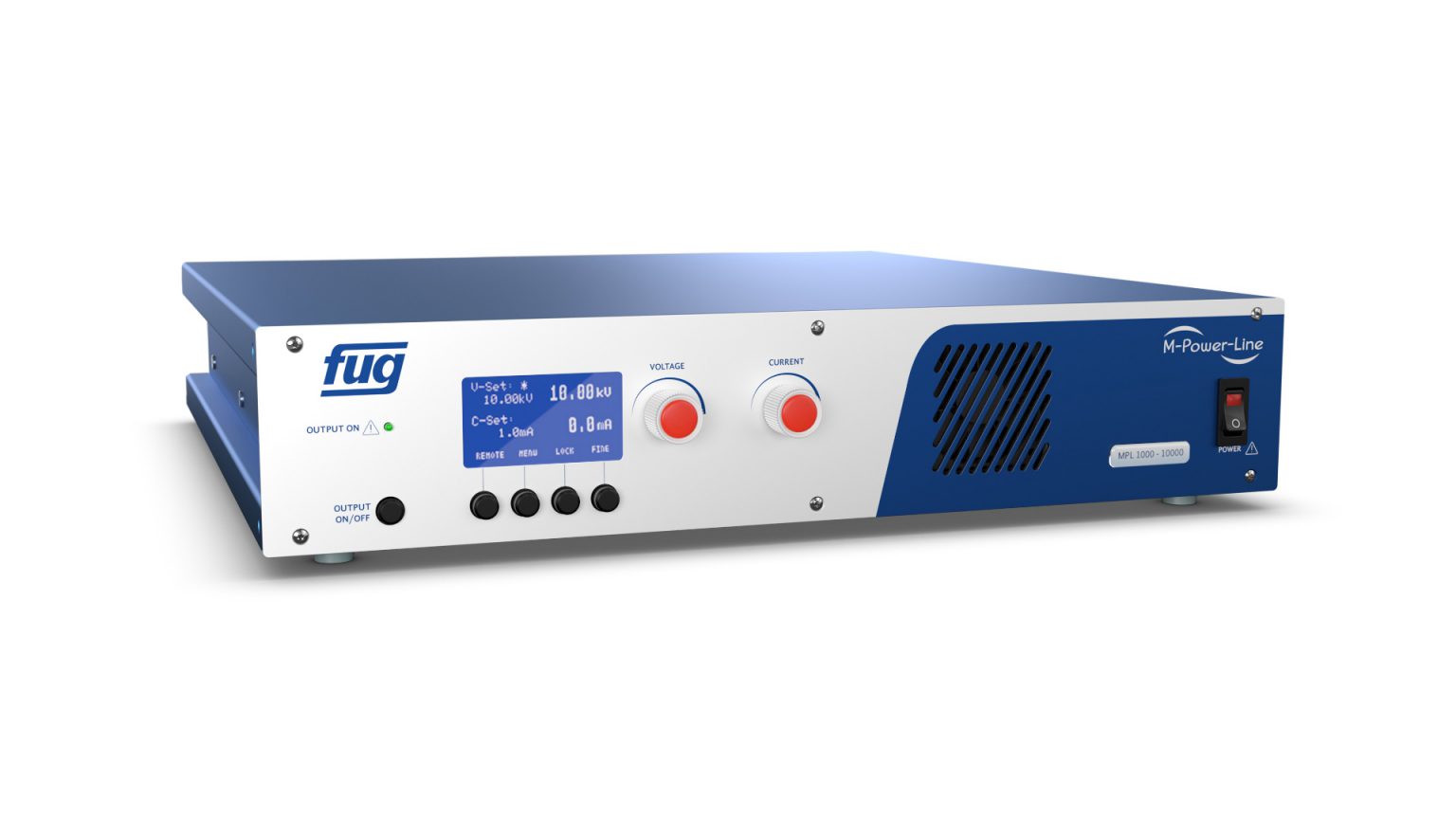

M-Power Line
The M-Power Line series is a competitive, highly efficient, compact DC power supply with robust design. Combining simple operation and an easy to use multi-function display, these power supplies are well suited for applications in industry, science and research.
Power
200W / 500W / 1000W
Voltage
Output voltage available in 3kV / 10kV / 30kV / 50kV, continuously adjustable from zero to maximum.
Key Features
- Multi-function control panel with user friendly interface
- Protected against short circuits and arcs
- Very compact and lightweight 2U rackmount package
- Variable fan speed for quiet operation
- Power ratings from 200 W to 1000 W
- High efficiency – 85% to 90%
- Output voltages: 0 – 3kV, 0 – 10kV, 0 – 30kV and 0 -50kV
- CE mark, EN61010 safety compliant
- Low 0.1% peak-peak output ripple
- Standard integrated LAN and USB interfaces
- Integrated ARC counter
- Wide range single phase AC input with active PFC
Applications
- Laboratory power
- Capacitor / Insulation testing
- Photomultiplier / Secondary electron multiplier
- Ion sources
- High voltage test stands
- Nuclear fusion research
- Gas discharge / Plasma
- Particle accelerators
- Electrostatics
- Sputtering
